06 - Entwicklung einer App mit KI per Spezifikation, Design

Claude’s Plan

Plan: LemoWeight Design Redesign

Context

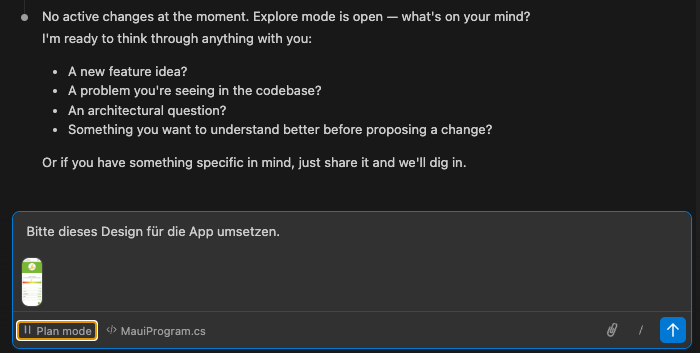

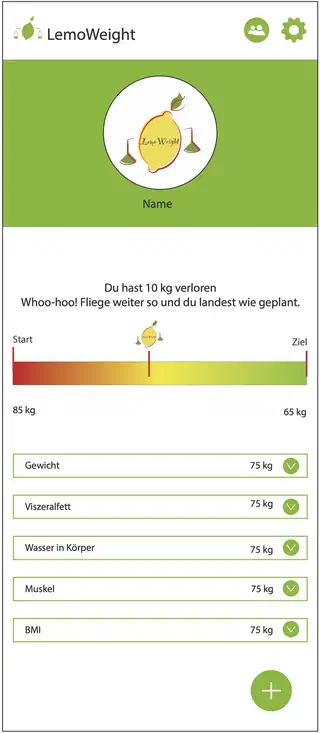

The user provided a mockup showing a complete visual redesign of the app’s home screen and brand theme. The app is currently using a purple color scheme — the new design uses a green (“LemoWeight”) brand identity. The redesign covers: a new green color theme app-wide, a redesigned MainPage with profile banner, progress bar toward goal weight, and body measurement cards (with placeholder data for all except weight).

Changes Overview

1. Color Scheme (whole app) — Colors.xaml + Styles.xaml

File: BodyMeasurement/Resources/Styles/Colors.xaml

Replace purple palette with green:

• Primary: #512BD4 → #8CB43E (olive-lime green)
• PrimaryDark: #ac99ea → #6E9E2D
• Secondary: #DFD8F7 → #E8F5D0
• Tertiary: #2B0B98 → #5A8020
• Magenta: #D600AA → #8CB43E (reuse as tab bar accent, was Magenta)
• MidnightBlue: #190649 → #2D4A10 (dark green for Headline style)
• Add LemoGreen: #8CB43E (named alias for use in MainPage)

File: BodyMeasurement/Resources/Styles/Styles.xaml

• Shell TabBarForegroundColor and TabBarTitleColor: already uses Magenta resource — will update automatically once Magenta changes to green.
• Headline/SubHeadline TextColor: uses MidnightBlue → will update automatically once MidnightBlue changes.

2. Settings — Add UserName + GoalWeightKg

File: BodyMeasurement/Services/ISettingsService.cs

Add two new properties:

• string UserName { get; set; } // default: ""
• double? GoalWeightKg { get; set; } // default: null

File: BodyMeasurement/Services/SettingsService.cs

Implement using Preferences.Get/Set():

• const string UserNameKey = "UserName";
• const string GoalWeightKgKey = "GoalWeightKg";
• GoalWeightKg stored as double, return null if not set (use sentinel value -1.0 or check Preferences.ContainsKey)

File: BodyMeasurement/Views/SettingsPage.xaml

Add a new “Profile” section before the Language section:

• Entry for Name (bound to UserName, placeholder: “Dein Name”)
• Entry for Goal Weight (bound to GoalWeightKg, Keyboard=Numeric, placeholder: “Zielgewicht in kg”)

File: BodyMeasurement/ViewModels/SettingsViewModel.cs

• Add [ObservableProperty] private string _userName;
• Add [ObservableProperty] private string _goalWeightKg; (as string for Entry binding, parse on change)
• In constructor: load from settings
• Add partial void OnUserNameChanged(string value) → save to _settingsService.UserName
• Add partial void OnGoalWeightKgChanged(string value) → parse and save to _settingsService.GoalWeightKg

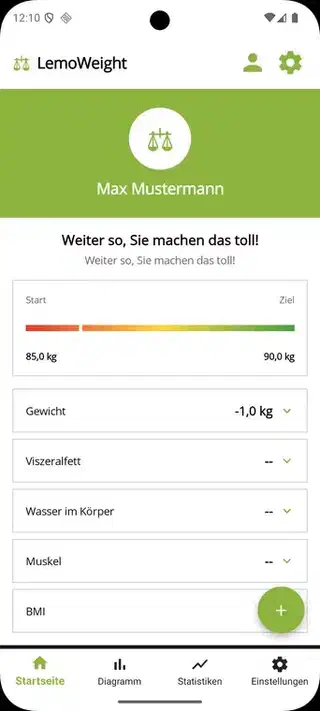

3. MainPage — Complete Redesign

File: BodyMeasurement/Views/MainPage.xaml

Replace the entire XAML layout. Set Shell.NavBarIsVisible=“False” on the ContentPage.

Layout (top to bottom):

┌─────────────────────────────────────────┐
│ [⚖ LemoWeight]          [👤]  [⚙]     │ ← Custom header bar (white bg)
├─────────────────────────────────────────┤
│        [Profile circle with logo]       │ ← Green background section
│              Name                       │
├─────────────────────────────────────────┤
│  "Du hast X kg verloren"               │ ← Motivational text
│  "Whoo-hoo! ..."                       │
│                                         │
│ Start          [●logo]           Ziel   │ ← Progress section
│ [█████████░░░░░░░░░░░░░░░░░░░░░░]      │   Gradient bar (red→yellow→green)
│ 85 kg                          65 kg   │
├─────────────────────────────────────────┤
│ ┌─────────────────────────────────────┐ │ ← Scrollable card list
│ │ Gewicht             75 kg   [v]    │ │
│ └─────────────────────────────────────┘ │
│ ┌─────────────────────────────────────┐ │
│ │ Viszeralfett        --      [v]    │ │
│ └─────────────────────────────────────┘ │
│ ... 3 more cards (Wasser, Muskel, BMI) │
│                                   [+]  │ ← FAB (green)
└─────────────────────────────────────────┘

Key XAML implementation details:

• Custom header: Border with horizontal Grid, logo via FontImageSource (⚖ MaterialIcons) + Label “LemoWeight”, two ImageButtons on right
• Profile section: Border with BackgroundColor="#8CB43E", Ellipse/Border with white stroke containing the app logo image, Label for UserName
• Progress bar: AbsoluteLayout over a Border with LinearGradientBrush (red→yellow→green); vertical BoxView marker positioned at ProgressValue using AbsoluteLayout.LayoutFlags=“XProportional”; Image of logo above marker
• Measurement cards: 5 Border elements in a VerticalStackLayout inside a ScrollView; each has a Grid with label, value, and green chevron Label (MaterialIcons )
• FAB: Reuse existing pattern, change color to #8CB43E

4. MainViewModel — New Properties

File: BodyMeasurement/ViewModels/MainViewModel.cs

Add:

[ObservableProperty] private string _userName = "";
[ObservableProperty] private double? _goalWeightKg;
[ObservableProperty] private double _progressValue;       // 0.0–1.0
[ObservableProperty] private string _weightLostDisplay = "--";    // e.g. "10 kg"
[ObservableProperty] private string _motivationalMessage = "";
[ObservableProperty] private string _startWeightDisplay = "--";
[ObservableProperty] private string _goalWeightDisplay = "--";
// Placeholder measurement displays
[ObservableProperty] private string _visceralFatDisplay = "--";
[ObservableProperty] private string _waterDisplay = "--";
[ObservableProperty] private string _muscleDisplay = "--";
[ObservableProperty] private string _bmiDisplay = "--";

In LoadStatisticsAsync():

• Load UserName and GoalWeightKg from _settingsService
• Calculate ProgressValue: (startWeightKg - currentWeightKg) / (startWeightKg - goalWeightKg), clamped to [0, 1]; show 0 if no goal set
• Calculate WeightLostDisplay from WeightChangeAbsolute
• Set MotivationalMessage based on progress (e.g. “Du hast X kg verloren”)

5. Localization Strings

Files:

• BodyMeasurement/Resources/Strings/Strings.resx
• BodyMeasurement/Resources/Strings/Strings.de.resx

Add new keys:

Files Modified

• BodyMeasurement/Resources/Styles/Colors.xaml — color palette
• BodyMeasurement/Services/ISettingsService.cs — new interface properties
• BodyMeasurement/Services/SettingsService.cs — implement new properties
• BodyMeasurement/Views/SettingsPage.xaml — Profile section
• BodyMeasurement/ViewModels/SettingsViewModel.cs — UserName + GoalWeightKg
• BodyMeasurement/Views/MainPage.xaml — full redesign
• BodyMeasurement/ViewModels/MainViewModel.cs — new properties
• BodyMeasurement/Resources/Strings/Strings.resx — new string keys
• BodyMeasurement/Resources/Strings/Strings.de.resx — German translations

Verification

1. Build the project: dotnet build BodyMeasurement/BodyMeasurement.csproj
2. Run on iOS Simulator or Android emulator
3. Check:
   • All UI elements use green theme (buttons, tab bar, FAB, borders)
   • Profile section shows name (default empty → “Name”)
   • Progress bar shows 0% with no goal set, correct position after setting a goal in Settings
   • Measurement cards show current weight + “–” for placeholders
   • Settings page has Profile section with Name + Goal Weight fields
   • Entering name and goal weight persists across app restarts
